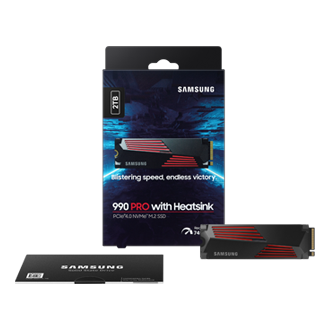

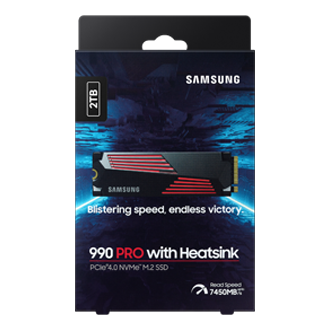

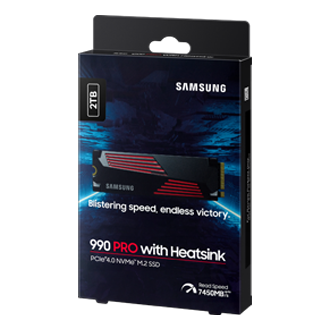

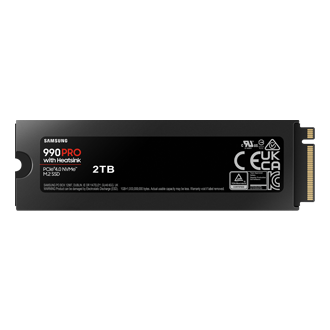

990 PRO with Heatsink PCIe 4.0 M.2

MZ-V9P2T0CW

Choose your Colour

Colour : Black

Choose your Memory

Offer

  • alt text

    Student Offers

    Register for up to 10% off Samsung devices

    Verify now
  • alt text

    Get an extra 5% off your first purchase on Shop App

    Discount automatically applied in cart. Offer valid until Feb 6.

    Get it now on Shop App
990 PRO with Heatsink PCIe 4.0 M.2
Black 2 TB

From $16.61/mo for 24 mos or $359.99

Features

The Ultimate SSD

Reach max performance of PCIe® 4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

990 PRO with Heatsink is a new memory product with superiorperformance and built-in heat control. 990 PRO with Heatsink is a new memory product with superiorperformance and built-in heat control.

* PCIe 4.0’s best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7450 MB/s as of Q3, 2022.

PCIe 4.0 speed maximized

Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

The 990 PRO with Heatsink speed to reaches near max PCIe 4.0 performance over the PCIe 3.0. with a sequential read speed of 7450 MB/s. The 990 PRO with Heatsink speed to reaches near max PCIe 4.0 performance over the PCIe 3.0. with a sequential read speed of 7450 MB/s.

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.
** Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU@3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi.
*** To maximize the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
**** 4TB to be released in 2023.

Breakthrough power efficiency

More power-efficient performance.Higher performance usually consumes more power. But, 990 PRO uses less power with up to 50% improved performance per Watt than 980 PRO.This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

The 990 PRO with Heatsink has a 50% improvement in sequence writespeed at 1,319 MB/Watt, over 980 PRO’s 877 MB/Watt. The 990 PRO with Heatsink has a 50% improvement in sequence writespeed at 1,319 MB/Watt, over 980 PRO’s 877 MB/Watt.

* 980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1380/1319 MB/Watt based on internal test result of 1TB capacity model.

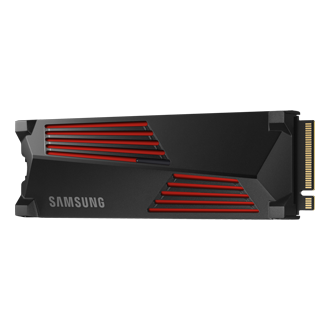

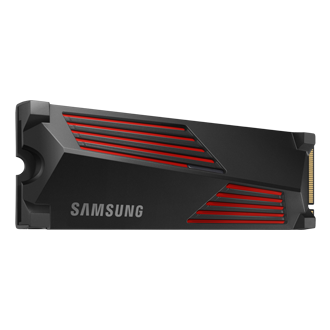

Smart thermal solution

Sink that heat.The slim heatsink dissipates heat to help prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming.The thin body is compatible with PlayStation® 5, desktops, and laptops meeting the PCI-SIG® D8 standard.

* PCI-SIG®D8 standard spec: 8.8mm

990 PRO with Heatsink prevents overheating using Thermal InterfaceMaterial and heatsink on the top and bottom, plus the nickel coatedcontroller. 990 PRO with Heatsink prevents overheating using Thermal InterfaceMaterial and heatsink on the top and bottom, plus the nickel coatedcontroller.

* PCI-SIG®D8 standard spec: 8.8mm

The champion maker

An amazing gameplay experience. A more than 55% improvement in random performance over 980 PRO enables faster loads for ultimate gaming realism on PlayStation® 5 and DirectStorage PC games.The heatsink’s futuristic design adds style to heat control, now with RGB lights.

990 PRO with Heatsink is a new memory product with superiorperformance and built-in heat control. 990 PRO with Heatsink is a new memory product with superiorperformance and built-in heat control.

* DirectStorage technology from Microsoft loads games super fast by leveraging the multiple GB/sec speed of modern NVMe SSDs.
** Results are based on a comparison with Samsung 980 PRO.

Samsung Magician software

Unlock the full power of 990 PRO.Samsung Magician software's user-friendly suite of optimization tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED colour combinations. Your personal SSD toolkit.

* The LED display colour may appear different from the colour setting due to viewing angles and/or environmental factors

Magician software provides a toolkit to manage the 990 PRO for best performance. This toolkit supports Integrative Drive health checks,performance benchmarks and optimizations, and encrypted drive and firmware updates. Magician software provides a toolkit to manage the 990 PRO for best performance. This toolkit supports Integrative Drive health checks,performance benchmarks and optimizations, and encrypted drive and firmware updates.

* The LED display colour may appear different from the colour setting due to viewing angles and/or environmental factors

World's No. 1 Flash Memory

Experience superb performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

* Source: 2003~2021 OMDIA data - NAND suppliers' revenue market share.

Samsung memory's World's No. 1 flash memory certified logo Samsung memory's World's No. 1 flash memory certified logo

* Source: 2003~2021 OMDIA data - NAND suppliers' revenue market share.

Specifications

  • Interface

    PCIe Gen 4.0 x4, NVMe 2.0

  • Sequential Read

    Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

  • Application

    Client PCs, Game Consoles

  • Weight

    Max 28.0 g Weight

  • Dimension (WxHxD)

    80 x 24.3 x 8.2 mm (with heatsink)

  • Application

    Client PCs, Game Consoles

  • Capacity

    2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    M.2 (2280)

  • Interface

    PCIe Gen 4.0 x4, NVMe 2.0

  • Dimension (WxHxD)

    80 x 24.3 x 8.2 mm (with heatsink)

  • Weight

    Max 28.0 g Weight

  • Storage Memory

    Samsung V-NAND 3-bit MLC

  • Controller

    Samsung in-house Controller

  • Cache Memory

    Samsung 2GB Low Power DDR4 SDRAM

  • TRIM Support

    Supported

  • S.M.A.R.T Support

    Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Encryption Support

    AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

  • WWN Support

    Not supported

  • Device Sleep Mode Support

    Yes

  • Sequential Read

    Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD32)

    Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD1)

    Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD1)

    Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

  • Average Power Consumption (system level)

    *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    3.3 V ± 5 % Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 ℃ Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

  • Installation Kit

    Not Available

  • Management SW

    Magician Software for SSD management
