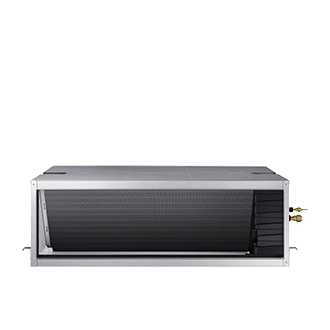

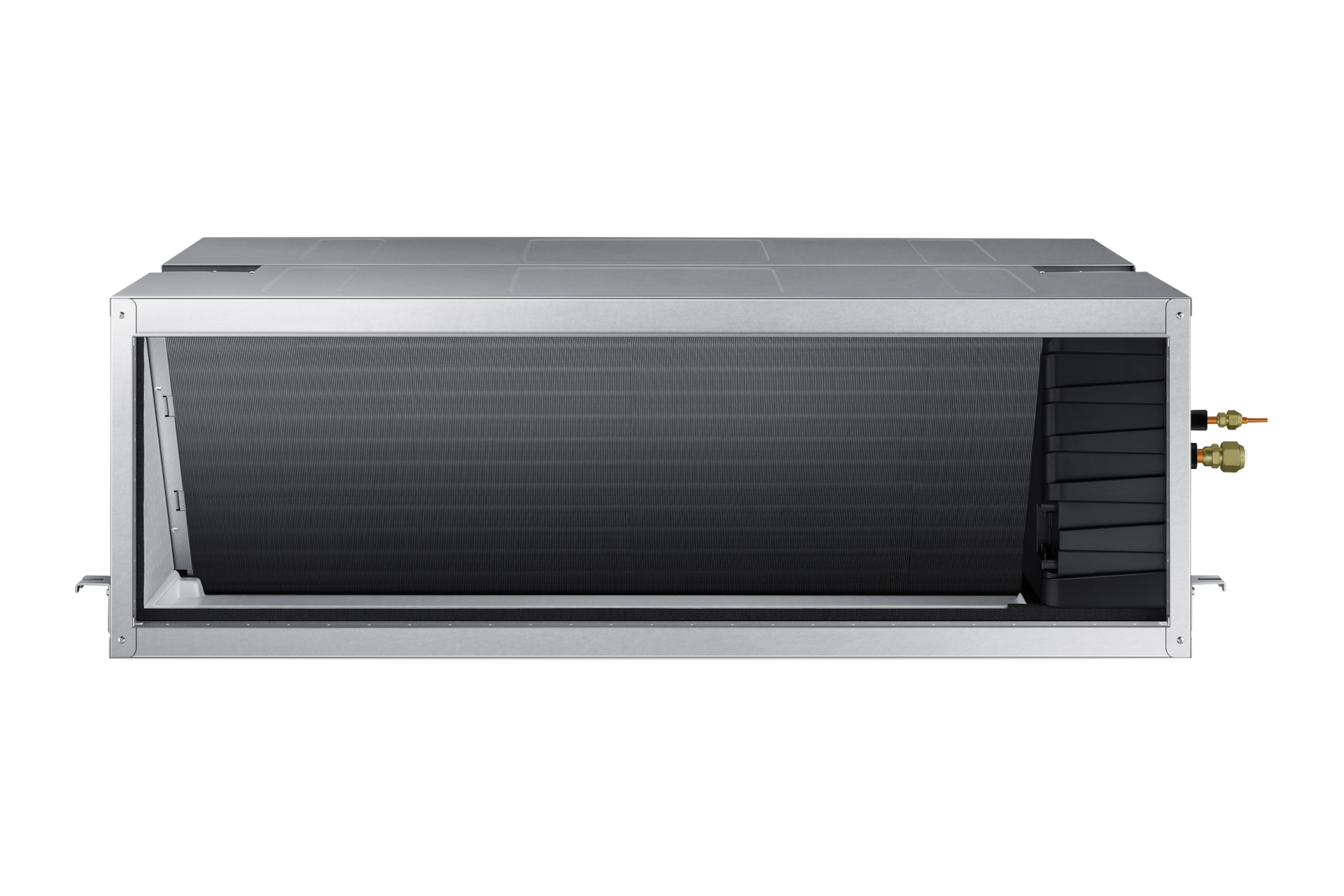

16.0kW Inverter Slim-Line Duct Split Indoor, R32

AC160TNHFKG/SA

3.0 ( 2 )

Choose Capacity

16.0kW Inverter Slim-Line Duct Split Indoor, R32
16.0kW

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your colour

Customisable frames sold separately

Choose your skin colour

Customisable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern type

  • {{item.name}}

    Out Of Stock

Bevelled type

  • {{item.name}}

    Out Of Stock

Skin colour

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

{{tradeInResult.displayModelName}}

{{tradeInResult.discountText1}}

{{tradeInResult.discountText2}}

{{tradeInResult.discountText3}}

{{tradeInResult.discountText4}}

{{tradeInResult.discountText5}}

{{tradeInResult.discountText6}}

{{tradeInResult.specialDiscountText}}

{{tradeInResult.description}}

{{tradeInResult.contentText}}

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Features

Comfortable all year round

A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.

Powerful Airflow for fast cooling

More fans than ever

Samsung Inverter Slim-Line Duct provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Inverter Slim-Line Duct will provide the airflow for comfort when you needed most.

*3 fans for 9~14kW units, 2 fans for 5.2 and 7.1kW units.
**200pa for 10~14kW units, 150pa for 5.2~9kW units

Low running cost

The Inverter Slim-Line Duct's highly efficient air conditioning system helps to avoid a hefty bill - meaning you can run your air conditioning all day long.

Lightweight and easy to install

Ultimate Convenience

Inverter Slim-Line Duct is designed to help make installation easy, with its lightweight and compact indoor unit. Larger capacity models (16kW and above) can be easily separated for handling and maneuvering into tight installation spaces.

Image depicts a 5.2kW to 14kW model

Image depicts a 5.2kW to 14kW model

3-way service access for easy maintenance

Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung Inverter Slim-Line Duct Air Conditioner is designed to be accessed from three directions – top, side and bottom – using an easy to remove Slide Fit cover. As a result, it’s much easier to maintain wherever it's installed.

** Image simulated for illustrative purposes only

** Image simulated for illustrative purposes only

Quiet, High Performance

Twin BLDC Compressor

The Inverter Slim-Line Duct system is designed with your needs in mind. Adopting Twin Brushless Direct Current (BLDC) rotary compressor with premium moving parts ensures a gentler, more reliable performance. It reduces vibration by 75% and creates less noise than conventional compressors.

*BLDC Rotary compressor applies to all models. Please note that the product image in the picture may be different from the actual one.

*BLDC Rotary compressor applies to all models. Please note that the product image in the picture may be different from the actual one.

Made for Australia

Comfortable, Reliable and Robust

The Inverter Slim-Line Duct Units were designed with your needs in mind. With an operating range of - 15°C to 50°C outside air temperature for cooling and -20°C to 24°C for heating, they will provide the ideal temperature control year round.* Made for Australia and made for you.

*Whilst the unit will keep running up to 50°C for cooling, as the outside temperature rises above 35°C, the cooling capacity will reduce. Similarly for heating, the capacity begins to reduce below 7°C. Image simulated for illustrative purposes only.

*Whilst the unit will keep running up to 50°C for cooling, as the outside temperature rises above 35°C, the cooling capacity will reduce. Similarly for heating, the capacity begins to reduce below 7°C. Image simulated for illustrative purposes only.

Controls to meet your needs

UX Wall Controller (Model MWR-WG00JN)

The Colour LCD Display with backlight and intuitive user interface, combined with a simple navigational control panel make using the Inverter Slim-Line Duct easy. You can also set the current date and time, as well as programmable yearly and holiday scheduling! The controller also allows you to monitor your energy usage.

All controllers are sold separately.

All controllers are sold separately.

Cool your home from anywhere

Wi-Fi and the SmartThings app

Connect your Samsung Ducted AC to your WiFi network using Wi-Fi kit MIM-H04AN (sold separately). Control your home air conditioner from anywhere, at any time using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch. The Wi-Fi kit helps you to centrally control your Samsung TV, appliances and other compatible smart devices. All you need to do is download the Samsung Smart Home App* to easily check the list of connected compatible devices, name and status.

##Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.

##Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.

Rest assured with Samsung Quality

5 Year Parts and Labour Warranty

The Samsung Ducted system is supported by a 5 year parts and labour warranty for residential applications*. Full terms and conditions visit: Samsung Warranty

*This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.

*This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.

Thoughtful Design


MEPS Compliant - Air Conditioners sold in Australia are required to meet Minimum Energy Performance Standards (MEPS) set by the Government.
D.R.E.D Demand Response Enabled Device - D.R.E.D allows certain energy providers to limit your power consumption during peak demand times to help reduce power strain on the electricity network. Participation may entitle you for rebates from your energy provider. Please contact your energy provider to find out if it recognises D.R.E.D. and for further details. All Samsung ducted systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.

Specifications

  • Reliable and Robust

    Made for Australia

  • High Performance

    Powerful Airflow

  • Peaceful Environment

    Quiet Operation

  • Efficient Design

    Low Running Cost

  • Indoor Unit

    AC160TNHFKG/SA

  • Outdoor Unit (1-Phase)

    AC160TXAPKG/SA

  • Outdoor Unit (3-Phase)

    AC160TXAPNG/SA

  • Type

    R32

  • Cooling (Min / Std / Max)

    6.2 / 16.0 / 18.0 kW

  • Heating (Min / Std / Max)

    4.8 / 18.0 / 20.0 kW

  • Sound Pressure @ 1.5m (H/L)

    43 / 39 / 35 dBA

  • Unit Dimension (WxHxD)

    1350 x 450 x 850 mm

  • Net Weight (kg)

    75.0 kg

  • Liquid Pipe (Φ, mm)

    9.52, 3/8"

  • Gas Pipe (Φ, mm)

    15.8, 5/8"

  • Max. Allowable Piping Length [m]

    85 m

  • Max. Allowable Piping Height [m]

    30 m

  • Drain connection size

    OD 32 / ID 25 mm

  • Pre-charged Length (m)

    30

  • Cooling (℃)

    -15 to 50 ℃

  • Heating (℃)

    -20 to 24 ℃

  • EER (Std, Cooling)

    3.60

  • COP (Std, Heating)

    3.85

  • AEER (Cooling)

    3.60

  • ACOP (Heating)

    3.84

  • ESP (L,M,H)

    49 / 61 / 196

  • Air Flow Rate (H, M, L)

    1120 / 970 / 820

  • Supply Air Opening (WxH)

    1284 x 360

  • Return Air Opening (WxH)

    1284 x 360

  • Power Supply

    1-phase, 220-240V, 50Hz

  • WiFi Kit

    Yes

  • SmartThings App Support

    Yes

  • Model Code

    AC160TXAPKG/SA

  • Power Supply

    1-phase, 220-240V, 50Hz

  • Type

    Twin BLDC Rotary

  • Sound Pressure @ 1m (Cool/Heat)

    55 / 57

  • Sound Power (Cooling - High)

    71

  • Net Weight

    100.5

  • Shipping weight

    109.5

  • Net Dimensions (WxHxD)

    940 x 1420 x 330

  • Shipping Dimensions (WxHxD)

    995 x 1598 x 426

  • Electrical (MCA)

    35.1

  • Eletrical (MFA)

    40

  • Model Code

    AC160TXAPNG/SA

  • Power Supply

    3 -phase, 380-415V, 50Hz

  • Type

    Twin BLDC Rotary

  • Sound Pressure @ 1m (Cool/Heat)

    55 / 57

  • Sound Power (Cooling - High)

    71

  • Net Weight

    99.5

  • Shipping weight

    108.5

  • Net Dimensions (WxHxD)

    940 x 1420 x 330

  • Shipping Dimensions (WxHxD)

    995 x 1598 x 426

  • Electrical (MCA)

    19.2

  • Eletrical (MFA)

    19.2
