Highlights

Made for Australia

Made for Australia

Fits into more places much more easily

Compact and Splittable Design

Energy Efficiency

Energy Efficiency

Simple to service in various locations

3-way Service Access

Features

Enjoy maximum comfort

A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.
Enjoy maximum comfort with our Premium Splittable Duct Systems.

Cool down faster

Powerful Airflow with more fans than ever

The strong and robust construction of our Premium Splittable Duct Indoor Unit brings a maximum of 25% more air-volume than our standard model* meaning you stay comforatble in all parts of your home.

* Comparing 12kW standard model to Premium Splittable Duct 12kW model. Illustration indicative only, actual effect will vary.

Easy to Install

Lightweight and Compact

Our Premium Splittable Duct Indoor Units are designed to meet the needs of Australian homes. A lightweight and compact design with a quality finish makes the Premium Splittable Duct easy to maneuver into any space.

* Image for illustration purposes. Product images may be different to actual product.

* Image for illustration purposes. Product images may be different to actual product.

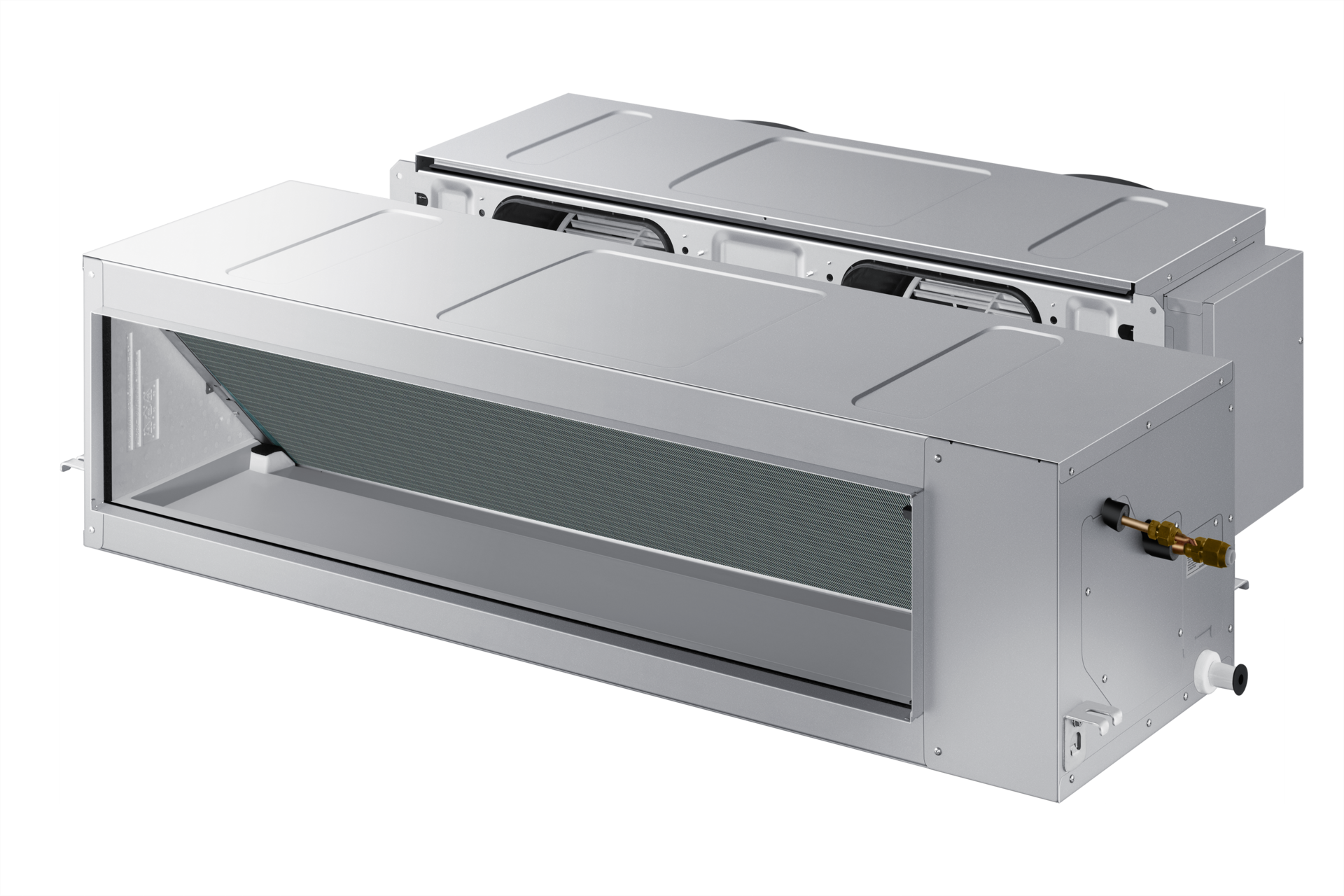

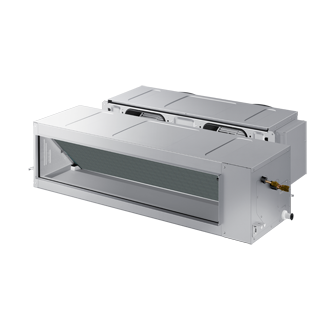

Innovative Design

Splittable and Tapered

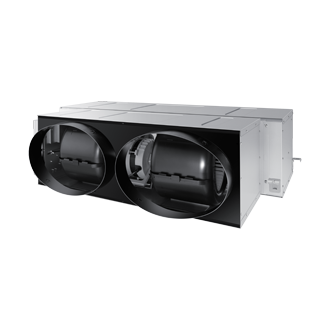

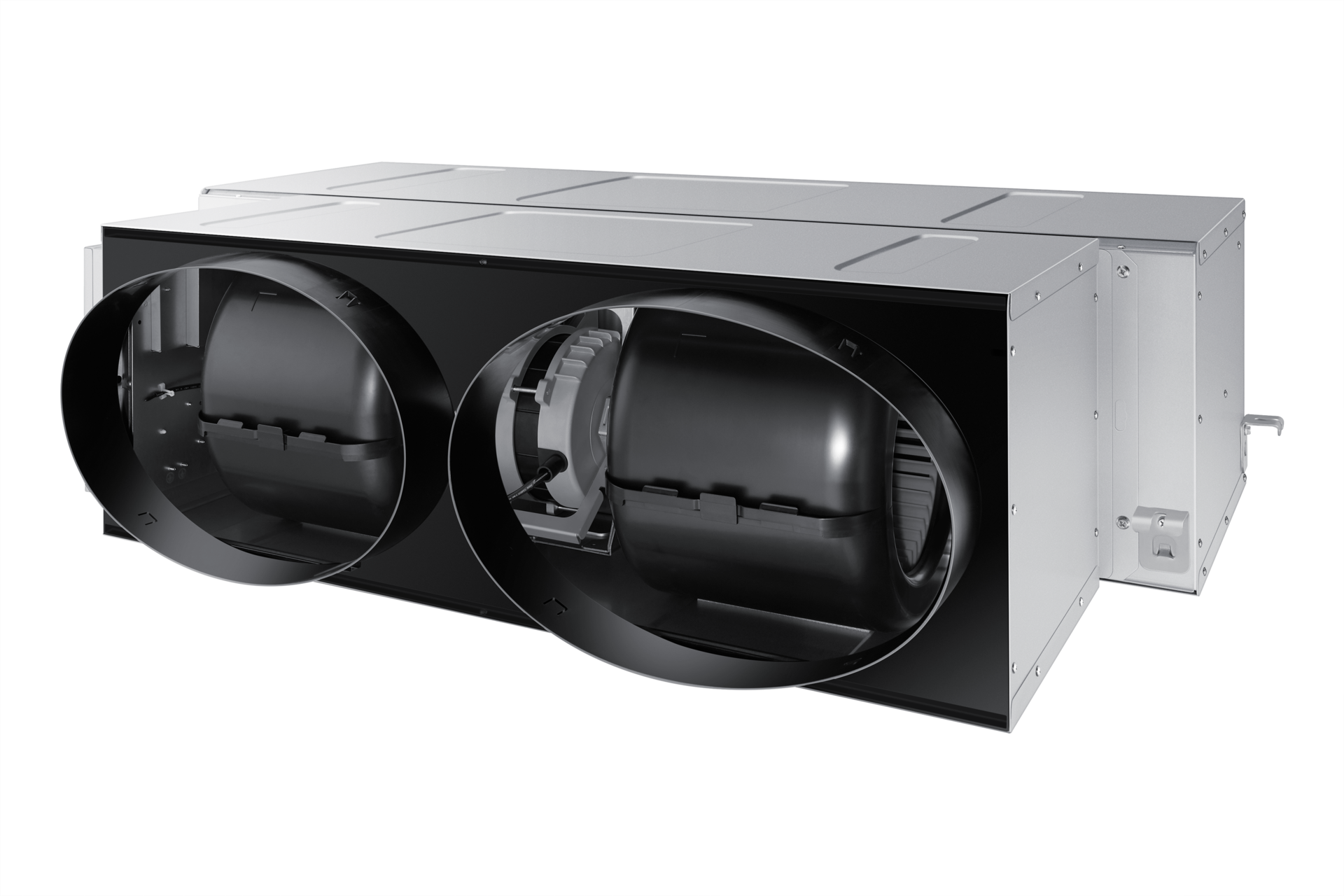

The Premium Splittable Duct splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space – perfect for renovations. The Premium Splittable Duct indoor init has a tapered fan motor section that fits in between roof trusses. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy.

Fits into more places much more easily

Compact and Splittable Design with Truss Chamfer

Install your air conditioner in more locations and conditions than conventional ducted systems. Its compact design is 10% smaller* and the Fan and Coil parts can also be split, so it’s easier to install or remove. And optional Truss Chamfers** make it ideal for use in roof or ceiling spaces.

  • * Compared to the previous Samsung duct unit, NS180HHXEG/XSA. Big Duct: w1350 x h470 x d910mm (553L) vs. NS180HHXEG/XSA: w1240 x h475 x d1040mm (613L).** Truss chamfers only available in Australia.

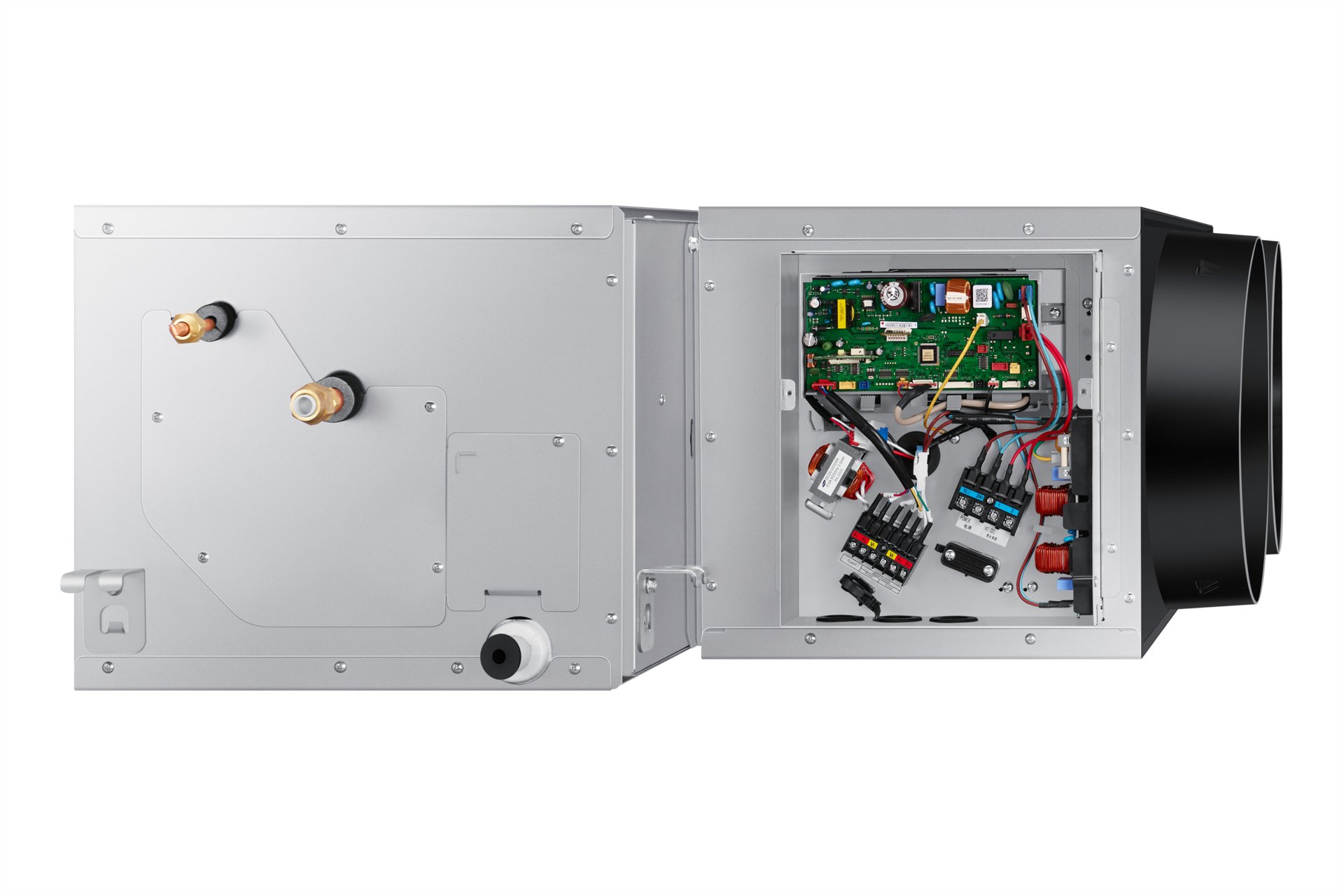

Easy Maintenance

3-Way Service

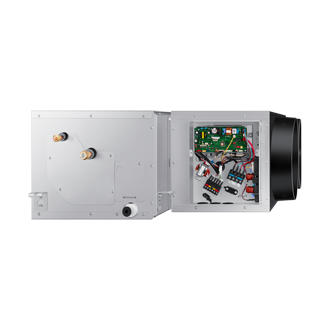

Samsung makes maintenance easier than ever with 3-Way Service. Premium Splittable Duct Indoor Units can be accessed from three directions - top, side and base - simplifying maintenance.

Quiet, High Performance

Twin BLDC Compressor and Auto ESP

With a rotary compressor and auto ESP the Premium Splittable Duct heats and cools your spaces in a matter of minutes and maintains optimal air-volume automatically. Able to function in areas with outside air temperatures between −15°C to 50°C for cooling and −20°C to 24°C for heating, enjoy maximum comfort in any Australian environment.

* Whilst the unit will keep running up to 50°C for cooling, as the outside temperature rises above 35°C, the cooling capacity will reduce. Similarly for heating, the capacity begins to reduce below 7°C.

* Whilst the unit will keep running up to 50°C for cooling, as the outside temperature rises above 35°C, the cooling capacity will reduce. Similarly for heating, the capacity begins to reduce below 7°C.

All round simpler & intuitive control

Controller (model MWR-WG00JN), sold separately

Intuitively control performance and know where the air is flowing. The MWR-WG00JN controller offers simple functionality control. The display allows you to set an on/off countdown timer and view the filter cleaning alert indicator, for your ease. Other controller options available.

*Illustration indicative only, actual installation will vary

*Illustration indicative only, actual installation will vary

Cool your home from anywhere

Wi-Fi and the SmartThings app

Connect your Samsung Ducted AC to your WiFi network using Wi-Fi kit MIM-H04AN, (sold separately). Control your home air conditioner from anywhere, at any time using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch. The Wi-Fi kit helps you to centrally control your Samsung TV, appliances and other compatible smart devices. All you need to do is download the Samsung Smart Home App* to easily check the list of connected compatible devices, name and status.

##Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.

##Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.

Thoughtful Design


MEPS Compliant - Air Conditioners sold in Australia are required to meet Minimum Energy Performance Standards (MEPS) set by the Government.
D.R.E.D Demand Response Enabled Device - D.R.E.D allows certain energy providers to limit your power consumption during peak demand times to help reduce power strain on the electricity network. Participation may entitle you for rebates from your energy provider. Please contact your energy provider to find out if it recognises D.R.E.D. and for further details. All Samsung ducted systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.

Rest assured with Samsung Quality

5 Year Parts and Labour Warranty

Peace of mind knowing we have you covered with Samsung's 5 year parts and labour warranty for residential applications. For full terms and conditions visit Samsung Warranty

`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.

`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.

Specifications

  • Indoor Unit

    AC100TNHPKG/SA

  • Type

    R32

  • Cooling (Min / Std / Max)

    4.7 / 10.0 / 14.0 kW

  • Heating (Min / Std / Max)

    3.6 / 12.5 / 17.0 kW

  • MCA

    26.7 A

  • MFA

    30.0 A

  • Unit Dimension (WxHxD)

    1350x360x899 mm

  • Net Weight (kg)

    66.5 kg

  • Liquid Pipe (Φ, inch)

    9.52, 3/8"

  • Gas Pipe (Φ, inch)

    15.8, 5/8"

  • Max. Allowable Piping Length [m]

    85 m

  • Max. Allowable Piping Height [m]

    30 m

  • Drain connection size

    OD 32 / ID 25 mm

  • Pre-charged Length (m)

    30

  • Cooling (℃)

    -15~50 ℃

  • Heating (℃)

    -20~24 ℃

  • EER (Std, Cooling)

    3.8

  • COP (Std, Heating)

    4.1

  • AEER (Cooling)

    3.79

  • ACOP (Heating)

    4.09

  • WiFi Kit

    Yes

  • SmartThings App Support

    Yes

  • Power Supply

    1-Phase, 220-240V, 50Hz

  • Air Flow Rate (H, M, L)

    800/683/550

  • ESP (L,M,H)

    0/49/150

  • Sound Pressure @ 1.5m (H/L)

    42/38/33

  • Supply Air Opening (WxH)

    1154x243

  • Return Air Opening (WxH)

    2xSpigot, each spigot to suit Ø400mm flexible duct
