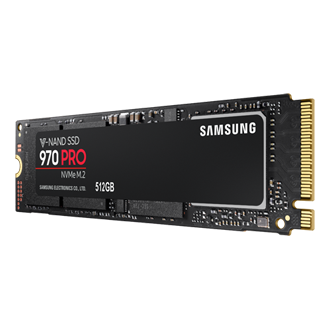

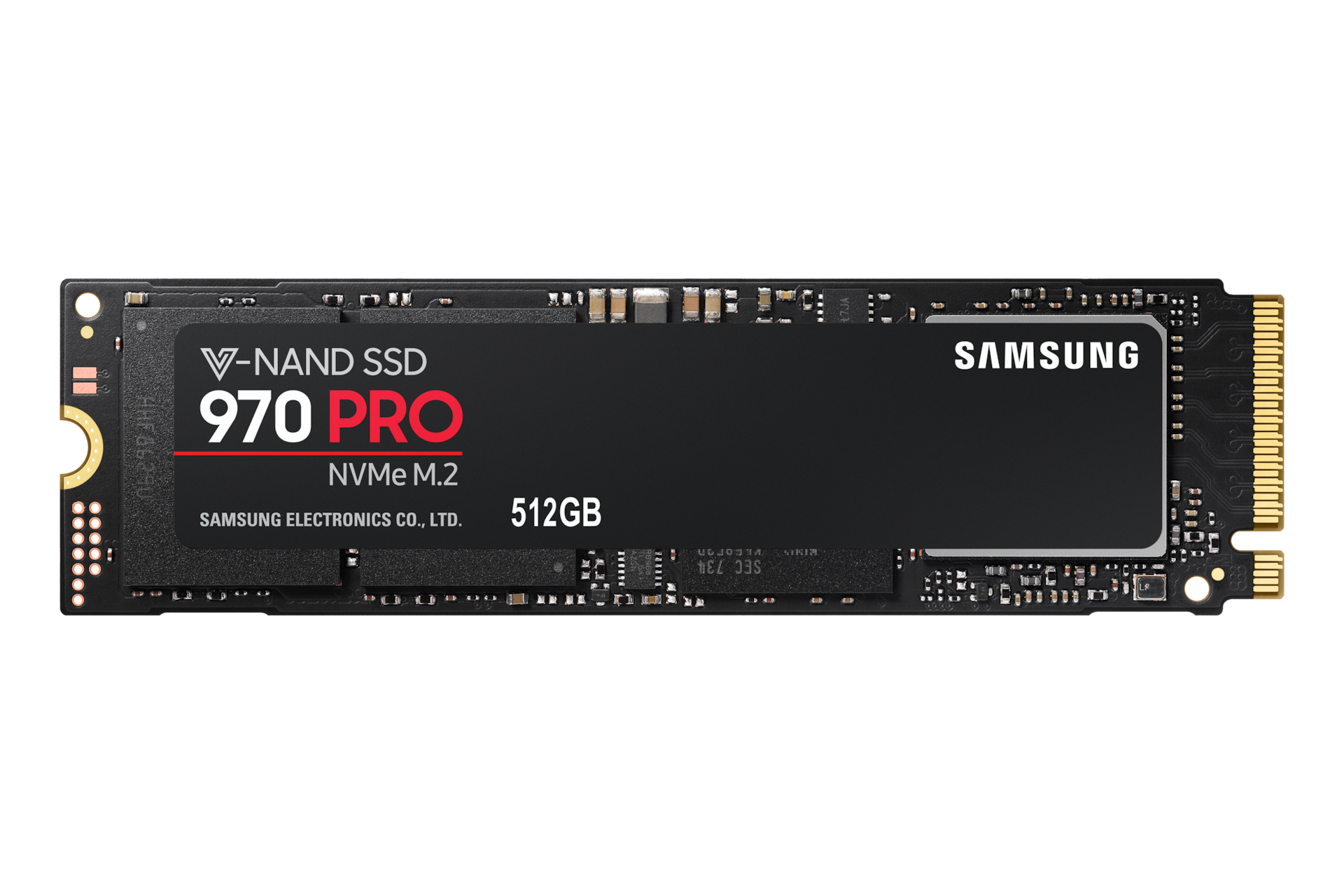

970 PRO NVMe M.2 SSD 512GB

MZ-V7P512BW

4.6 ( 21 )

Choose Memory

970 PRO NVMe M.2 SSD 512GB
512 GB

Where to buy

Sorry! This product is no longer available

Highlights

NAND Flash

NAND Flash

Exceptional Endurance

Exceptional Endurance

TurboWrite

TurboWrite

Fearless Performance

Fearless Performance

Features

The SSD that goes beyond

Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung's NVMe SSD leadership. Samsung's latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor is designed to surpass the demands of tech enthusiasts and professionals.

The SSD that goes beyond The SSD that goes beyond

Fearless Performance

Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with Samsung's latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30% faster than the previous generation of Samsung's SSDs.

Fearless Performance Fearless Performance

*Sequential and random performance measurements are based on IOmeter 1.1.0. Performance may vary based on the SSD†s firmware version, system hardware and configuration. Test system configuration: Intel® Core i7-7700K CPU@4.2GHz, DDR4 2400MHz 32GB, OS-Window 10 Built 10240, Chipset-ASUS PRIME Z270-A

Exceptional Endurance

Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, helps to achieve 50% greater endurance than the previous generation, all powered by the latest V-NAND technology.

*TBW: Terabytes Written *Warrantied TBW for 970 PRO: 600 TBW for 512GB model, 1,200 TBW for 1TB model. 5-years or TBW, whichever comes first. For more information on the limited warranty, please visit www.samsung.com/au/support/warranty (‘Storage’) or see enclosed warranty statement in the package.

Exceptional Endurance Exceptional Endurance

*TBW: Terabytes Written *Warrantied TBW for 970 PRO: 600 TBW for 512GB model, 1,200 TBW for 1TB model. 5-years or TBW, whichever comes first. For more information on the limited warranty, please visit www.samsung.com/au/support/warranty (‘Storage’) or see enclosed warranty statement in the package.

Unparalleled Reliability

Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO is designed to enable exceptional heat dissipation. The Dynamic Thermal Guard can automatically monitor and maintain optimal operating temperatures to help minimize performance drops.

Unparalleled Reliability Unparalleled Reliability

Samsung Magician

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Samsung Magician Samsung Magician

Specifications

  • Interface

    PCIe Gen 3.0 x4, NVMe 1.3

  • Sequential Read

    Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 2,300 MB/s * Performance may vary based on system hardware & configuration

  • Warranty

    5-Year Limited Warranty or 600 TBW Limited Warranty

  • Application

    Client PCs

  • Weight

    Max 8.0 g Weight

  • Dimension (WxHxD)

    80.15 x 22.15 x 2.38 (mm)

  • Application

    Client PCs

  • Rated Capacity

    512GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    M.2 (2280)

  • Interface

    PCIe Gen 3.0 x4, NVMe 1.3

  • Dimension (WxHxD)

    80.15 x 22.15 x 2.38 (mm)

  • Weight

    Max 8.0 g Weight

  • Storage Memory

    Samsung V-NAND 2-bit MLC

  • Controller

    Samsung Phoenix Controller

  • Cache Memory

    Samsung 512MB Low Power DDR4 SDRAM

  • TRIM Support

    Supported

  • S.M.A.R.T Support

    Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Encryption Support

    AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

  • WWN Support

    Not supported

  • Device Sleep Mode Support

    Yes

  • Sequential Read

    Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 2,300 MB/s * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD32)

    Up to 370,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 500,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD1)

    Up to 15,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD1)

    Up to 55,000 IOPS * Performance may vary based on system hardware & configuration

  • Average Power Consumption (system level)

    * Average: 5.2 W * Maximum: 8.5 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    3.3 V ± 5 % Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 ℃ Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

  • Installation Kit

    Not Available

  • Management SW

    Magician Software for SSD management

  • 5-Year Limited Warranty or 600 TBW Limited Warranty
