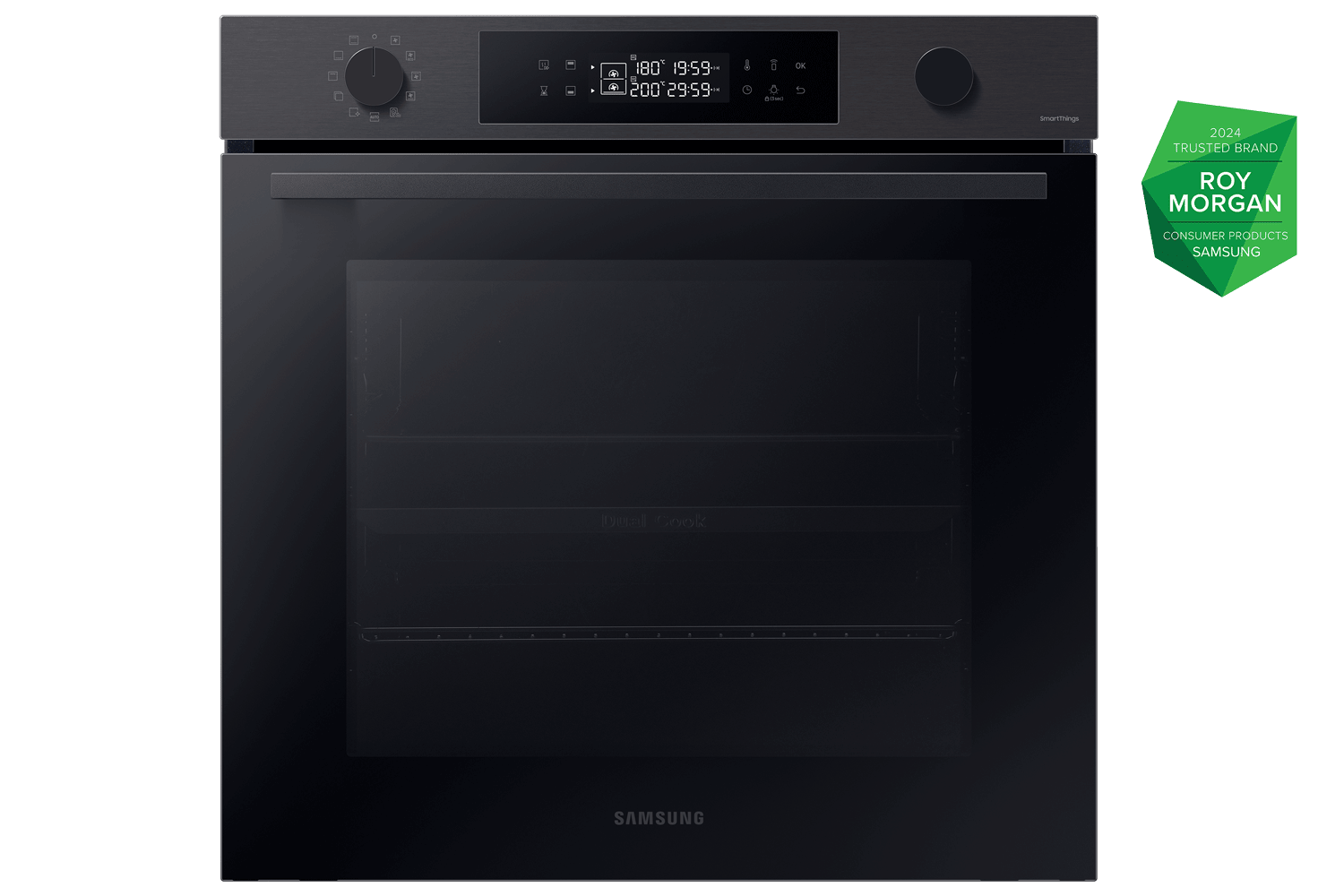

76L Built in Pyrolytic Oven Black - NV7B4430ZAB

From $62.46/mo for 24 mos or $1,499.00

Add to cart Where to buy

Highlights

Roy Morgan Most Trusted Consumer Products Brand 2024

Roy Morgan Most Trusted Consumer Products Brand 2024

Features

Pyrolytic Oven with Dual Cook

Shows the built-in oven installed in a kitchen, with two cooking zones and a hinged door, next to a Microwave Combi oven. Shows the built-in oven installed in a kitchen, with two cooking zones and a hinged door, next to a Microwave Combi oven.

Highlights

Shows the upper and lower zones being used independently to cook different dishes at the same time using different settings.

Dual Cook

Dual Cook’s upper and lower zones can work independently or together.

Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system.

Air Sous Vide

Cook food much more evenly without it being overcooked or drying out

Shows 3 smartphone screens from the SmartThings Cooking app, which lets you access personalized recipes and meal plans, view guided cooking instructions and create a grocery shopping list to buy ingredients.

Pyrolytic Cleaning

Keep the inside of your oven neat and clean without wasting time and effort scrubbing or using costly cleaning products

One oven, three ways

Dual Cook

Choose how you cook different meals to optimise results. Dual Cook’s upper and lower zones work independently or together. Use the upper zone for smaller dishes, both together to prepare a variety of dishes with different settings and achieve tasty results, or the whole oven for large dishes.

Shows the upper and lower zones of the Dual Cook Flex system being used independently to cook different dishes at the same time with different settings: the upper zone using top heat + convection for 1 hour at 160°C and the lower zone using bottom heat + convection for 20 minutes at 190°C. Shows the upper and lower zones of the Dual Cook Flex system being used independently to cook different dishes at the same time with different settings: the upper zone using top heat + convection for 1 hour at 160°C and the lower zone using bottom heat + convection for 20 minutes at 190°C.

Totally even cooking

Air Sous Vide*

Cook food more evenly without it overcooking or drying out. An Air Sous Vide* system accurately senses the temperatures in each cavity and maintains an even temperature for a long period. So everything is cooked thoroughly, wherever it is in the oven, and tastes deliciously tender and juicy.

Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system. Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system.

* Requires a dedicated sous vide cooking bag, which is not included with the oven.

More joy, less burden

SmartThings Cooking*

Make your kitchen experience more joyful. SmartThings Cooking* saves time and minimises the burden of cooking. By understanding your needs it recommends personalised recipes** and creates a weekly meal plan.

* Requires a wireless network, a Samsung account and the Samsung SmartThings App. The Samsung SmartThings App supports Android OS 8.0 (Oreo) or later, which is optimised for Samsung smartphones. This App also supports iOS 13 or later for iPhone models. The SmartThings App is available in the App Store and Play Store.
** Available in certain languages, including English, French, German, Italian and Spanish.
Shows 3 smartphone screens from the SmartThings Cooking app, which lets you access personalised recipes and meal plans, view guided cooking instructions and create a grocery shopping list to buy ingredients. Shows 3 smartphone screens from the SmartThings Cooking app, which lets you access personalised recipes and meal plans, view guided cooking instructions and create a grocery shopping list to buy ingredients.

Always keeps the oven neat with heat

Pyrolytic Cleaning

Keep the inside of your oven neat and clean without wasting time and effort scrubbing or using costly cleaning products. A Pyrolytic Cleaning system heats the cavity to burn off any grease and residue left from cooking. Everywhere is left spotless with only a few ashes to wipe away.

Shows the inside of the oven "before" and "after" cleaning using the Pyrolytic Cleaning system. Shows the inside of the oven "before" and "after" cleaning using the Pyrolytic Cleaning system.

Cook much more at once

Large Capacity (76L)

Create more and larger dishes with a massive 76 litre capacity oven. It opens up more possibilities in home cooking. You can prepare lots of different food together, like everything you need for a party. Or it can easily accommodate large items for a family gathering.

Shows a large turkey cooking inside the spacious oven with arrows illustrating its 76 liter capacity. Shows a large turkey cooking inside the spacious oven with arrows illustrating its 76 liter capacity.

Smooth gliding shelf

Telescopic Rail

Get food in and out of the oven with ease. The Telescopic Rail slides in and out with ease, even when using large or heavy pans. Now you can baste, turn and season food without any spills.

Shows a large roast turkey sliding out of the oven on the Telescopic Rail. Shows a large roast turkey sliding out of the oven on the Telescopic Rail.

How to measure

Diagrams highlight the dimensions of the oven: height (front) = 596mm, height (back) = 559mm + 20mm to height in middle, width = 595mm (incl. front) / 560mm (excl. front), depth = 550mm + 21mm for the door (excl. handle). Another diagram shows the minimum size of the built-in cabinet space that the oven can be installed in: height = min. 590mm / max. 600mm, width = min. 560mm, depth = min. 550mm + a space of min. 50mm behind the oven. It also shows that the doors extends out 481mm when fully open. The text says that there must be vents on the rear floor of the built-in cabinet space that are a min. 460mm x min 50mm to ventilate heat and circulate the air. Diagrams highlight the dimensions of the oven: height (front) = 596mm, height (back) = 559mm + 20mm to height in middle, width = 595mm (incl. front) / 560mm (excl. front), depth = 550mm + 21mm for the door (excl. handle). Another diagram shows the minimum size of the built-in cabinet space that the oven can be installed in: height = min. 590mm / max. 600mm, width = min. 560mm, depth = min. 550mm + a space of min. 50mm behind the oven. It also shows that the doors extends out 481mm when fully open. The text says that there must be vents on the rear floor of the built-in cabinet space that are a min. 460mm x min 50mm to ventilate heat and circulate the air.

Specifications

  • Outside Dimensions (WxHxD) mm

    595 x 596 x 570 mm

  • Weight (Net)

    41.0 kg

  • Convection

    1200 / 1200 W

  • Oven Type

    Dual Cook

  • Door Type

    Drop Down

  • Oven Doors

    Quadruple

  • Soft Closing Door

    No

  • Display Type

    LED / White

  • Steam Type

    No

  • Upper Grill (In/Out)

    1600 / 1100 W

  • Lower Grill

    1100 W

  • Single Mode (Top Heat + Convection)

    Yes

  • Single Mode (Grill - top heater only)

    Yes

  • Single Mode (Eco Grill)

    Yes

  • Single Mode (Bottom + Convection)

    Yes

  • Convection

    1200 / 1200 W

  • Cleaning Method

    Pyrolytic

  • Steam Clean

    Yes

  • Wi-Fi Connection

    Yes

  • Air Fry

    No

  • Air Sous Vide

    Yes

  • Cook Timer

    Yes

  • Camera

    No

  • End Timer

    Yes

  • Child Safety Lock

    Yes

  • Clock

    Yes

  • Interior Lamp (watts)

    25W / 40W (Halogen)

  • Interior Light (Position)

    Top / Side

  • Light (Lamp) On/Off

    Yes

  • Language Option

    No

  • Usable Volume (Whole)

    76 L

  • Cavity Dimensions (Single) (WxHxD) mm

    560 x 579 x 549 mm

  • Outside Dimensions (WxHxD) mm

    595 x 596 x 570 mm

  • Shipping (WxHxD)

    694 x 660 x 660 mm

  • Loading Quantity

    72 / 162

  • Weight (Net)

    41.0 kg

  • Wire / Insert Rack

    2ea

  • Square Wire Rack (Shelf / Roast)

    1ea

  • Telescopic Rail

    1 Level (Half)

  • Power Source

    230-240 V ~ 50 Hz

  • Output Power

    3650-3950 W

  • Oven Temp. Ranges (Single)

    30~250 (Grill 100~270)

  • Oven Temp. Ranges (Upper, Lower)

    40~250 °C

  • Oven Temp. Ranges (Twin)

    40~250 °C

  • WiFi Embedded

    Yes

  • SmartThings App Support

    Yes
