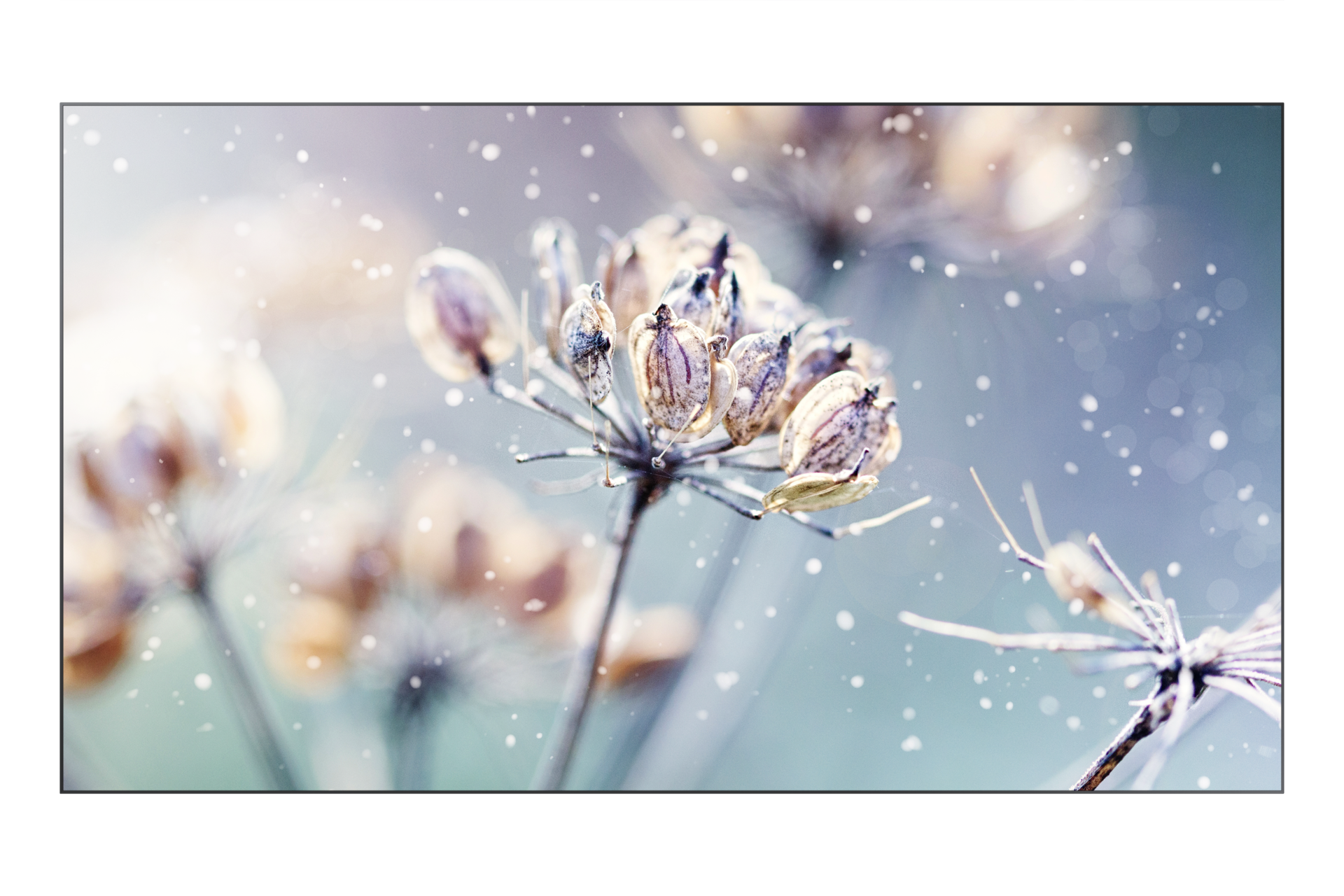

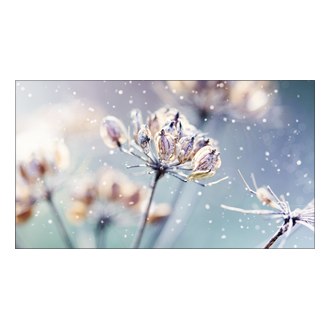

Flexible and dynamic content options with powerful SoC embedded video wall
Samsung’s VMR-U is a powerful and efficient SoC embedded video wall that can easily transform screens from displaying standalone content to operating as one cohesive unit without the need for additional hardware. The VMR-U is a great solution for capturing and keeping your customer’s attention.
*Screen image simulated for illustrative purposes.
System-on-chip (SoC)
The VMR-U features embedded system-on-chip (SoC) technology, allowing screens to easily switch between displaying individual content and operating together to display a cohesive image. This can be done with a simple HDMI loop out or LAN connection, eliminating the need for an external media player.
*HDMI and LAN sold separately.
Samsung SMART Signage Platform (SSSP)
Samsung’s SMART Signage Platform (SSSP) powered by Tizen 4.0, supports a web friendly environment for development through reinforced compatibility with web formats and standards. It allows for effortless, real-time content updates that are necessary in this fast-paced industry.
*Internet connection required.
Comprehensive calibration
Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and colour throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and colour uniformity with Samsung's Colour Expert Pro, a powerful free software program.
Colour Expert Pro Mobile
Samsung’s Colour Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.
Specifications
Specifications Detail
Display
- Diagonal Size 46"
- Panel Type Slim Direct
- Resolution 1,920 x 1,080
- Pixel Pitch (HxV) 0.53x0.53
- Brightness (Typical) Max 500
- Contrast Ratio⁵ 3,500:1
- Viewing Angle (H/V) 178/178
- Response Time 8ms
- Colour Gamut 0.72 %
- Glass Haze 25 %
- H-Scanning Frequency 60kHz ~ 69.75kHz
- Maximum Pixel Frequency 152.5MHz
- V-Scanning Frequency 48Hz ~ 62.5Hz
- Contrast Ratio (Dynamic) Mega
Connectivity
- HDMI In 2
- DP In 1
- USB 1
- Component In No
- Composite In No
- IR In Yes
- HDBaseT In No
- Audio In No
- Audio Out Stereo Mini Jack
- Video Out Yes
- Power Out No
- RS232 In Yes
- RS232 Out Yes
- RJ45 In Yes
- RJ45 Out No
Power
- Power Supply AC 100 to 240 VAC (60 / 50Hz)
- Power Consumption (On Mode) 143
- Power Consumption (Sleep Mode) 0.5W
Dimension
- Set Dimension (WxHxD) 1022.1 x 576.6 x 97.4 mm
- Package Dimension (HxWxD) 1153 x 724 x 295 mm
Weight
- Net Weight 15.9 kg
- Package Weight 21.7 kg
Operation Conditions
- Temperature 0℃~ 40℃
- Humidity 10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount 600 x 400 mm
- Bezel Width 2.3mm(U/L), 1.2mm(R/B)
- Frame Material Glossy
General Feature
- External Memory Slot No
Optional Feature
- Mount Yes
- Stand No
Internal Player (MagicInfo)
- MagicInfo Daisychain Videowall Support Yes
Certification and Compliance
- EMC FCC (USA) PART 15, SUBPART B CLASS A CE (EUROPE) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (JAPAN) : VCCI V-3 /2010.04 CLASS A KCC/EK (KOREA) : TUNER : KN13 / KN20 TUNERLESS : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) CLASS A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (DIGITAL) C-TICK (AUSTRALIA) : AS/NZS CISPR22:2009 CCC(CHINA) :GB9254-2008 GB17625.1-2012 GOST(RUSSIA/CIS) : GOST R 51317 SERIES, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
- Safety CB (EUROPE) : IEC60950-1/EN60950-1 CCC (CHINA) : GB4943.1-2011 PSB (SINGAPORE ) : PSB+IEC60950-1 NOM (MEXICO ) : NOM-001-SCFI-1993 IRAM (ARGENTINA ) : IRAM+IEC60950-1 SASO (SAUDI ARABIA ) : SASO+IEC60950-1 BIS(INDIA) : IEC60950-1 / IS13252 NOM(MEXICO) : TUNER : NOM-001-SCFI-1993 TUNERLESS : NOM-019-SCFI-1998 KC(KOREA) : K 60950-1 EAC(RUSSIA) : EAC+IEC60950-1 INMETRO(BRAZIL) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(AUSTRALIA) : IEC60950-1/AS/NZS 60950-1 UL(USA) : CUL60950-1 CSA (CANADA) : CUL TUV (GERMANY) : CE NEMKO (NORWAY) : CE
Support
Find answers to your questions about the product
-
User Manual (Common)
- ver 03
- 11.98 MB
- Jun 14. 2021
ENGLISH, FRENCH, PORTUGUESE(Brazil), SPANISH -
Data Sheet
- ver 03
- 0.45 MB
- Jun 22. 2020
ENGLISH -
Quick Setup Guide
- ver 00
- 3.13 MB
- May 30. 2019
ENGLISH, ARABIC, CHINESE, FRENCH, PORTUGUESE, VIETNAMESE -
User Manual (by Model)
- ver 00
- 0.74 MB
- May 30. 2019
ENGLISH
