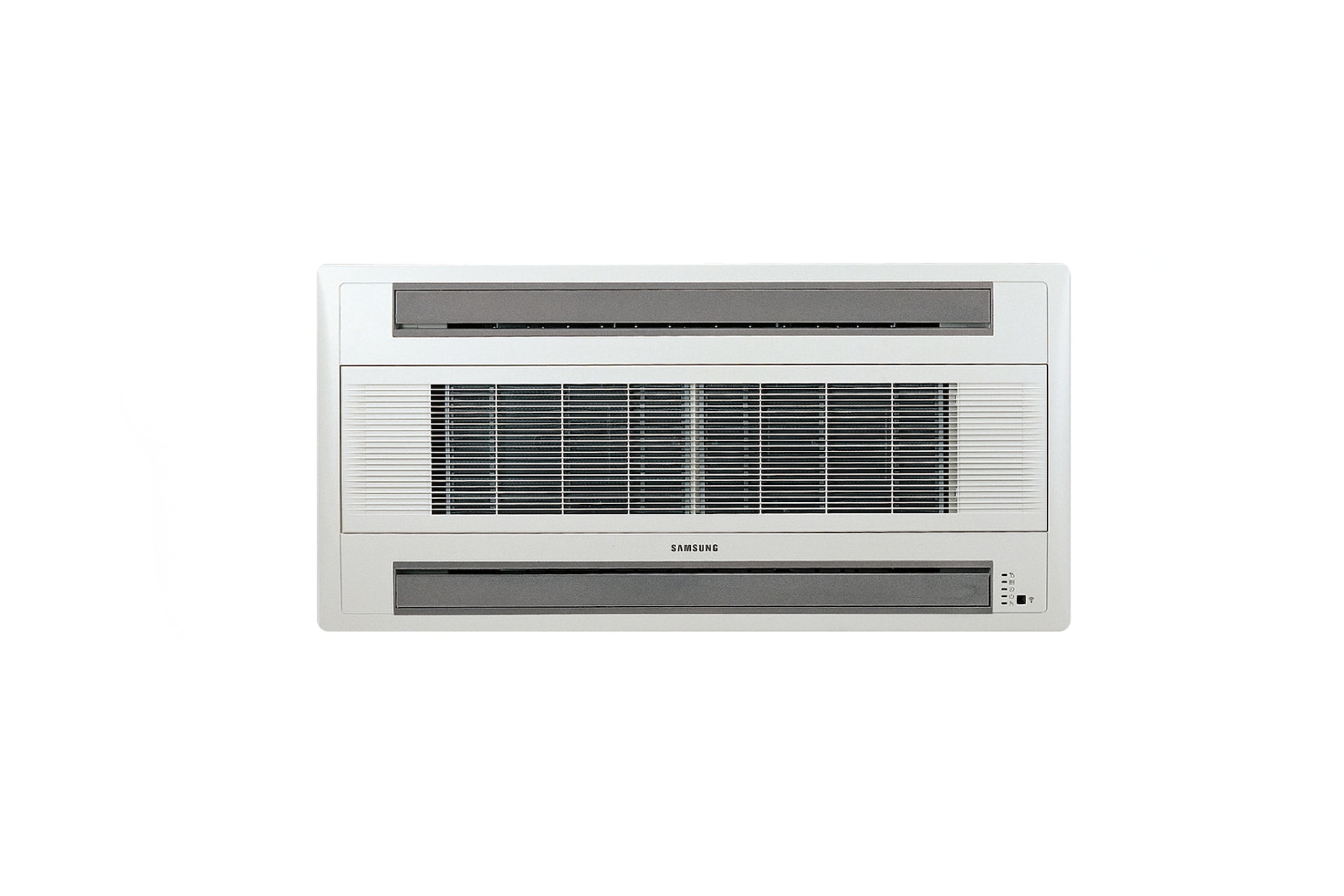

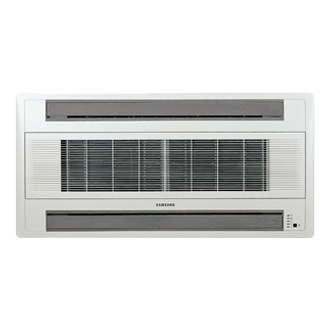

DVM, 2-Way Cassette, Heat Pump R410a, Indoor Unit

DVM, 2-Way Cassette, Heat Pump R410a, Indoor Unit

AM071FN2DEH/EU

  • Powered to Purify, Cool and Heat

Choose your Capacity

DVM, 2-Way Cassette, Heat Pump R410a, Indoor Unit

7.1 kW
Ideal for Long and Narrow Places Ideal for Long and Narrow Places

Ideal for Long and Narrow Places

When indoor space is at a premium, the 2 Way Cassette is an ideal solution, particularly in long narrow areas such as hallways and corridors. As it is 45 per cent smaller than previous units, and requiring 30 per cent less room than the 4 Way cassette, it is easily incorporated into existing or planned building designs. Conveniently slotting into standard ceiling grids, the result is a discreet air conditioning system which offers maximum performance with minimum visual impact on decor.

Auto Surround Swing Auto Surround Swing

Auto Surround Swing

The innovative Twin Cross Flow Fan distributes cool and warm air even further with a minimum of noise. This efficient system suits rooms of any dimension so no corner is overlooked.

Self-Diagnosis Mode Self-Diagnosis Mode

Self-Diagnosis Mode

The unit's self-diagnosis mode alerts users to malfunctions straight away. An error code and LED light enable engineers to identify the problem quickly, reducing the time taken to fix it.

Optimum Temperature Control Optimum Temperature Control

Optimum Temperature Control

Businesses benefit from a regular climate throughout the entire room with the Optimum Temperature Control feature. This function detects the temperature at the top and bottom of the area, then acts to minimise the difference maintaining optimum levels all around the room. As a result, hot and cold spots are eliminated, creating more balanced, comfortable surroundings.

Powerful Airflow

The 2 Way Cassette's wide blades create powerful airflow without wasting energy. Removing the need for multiple appliances, the indoor unit delivers cool or warm air at greater distances, making it more efficient for businesses. Providing even cooling and heating throughout the room, the 2 Way Cassette delivers optimal results, even in the remotest corners of the space.
Powerful Airflow Powerful Airflow

Ceiling Dust Prevention

Dirty ceilings are no longer an issue with the 2 Way Cassette air conditioning unit. The newly designed panel prevents dust from gathering over long periods of operation. By controlling the direction of the airflow so that it avoids contact with the ceiling, businesses can enjoy cleaner and more elegant work spaces than ever.
Ceiling Dust Prevention Ceiling Dust Prevention

High Lift-Up Drain Pump

The 2 Way Cassette includes an optional high lift-up drain pump. This lifts condensed water up to 750 mm compared with previous 700 mm limits. The increased quantity provides more flexibility over where the unit is installed, offering users greater convenience than ever.
High Lift-Up Drain Pump High Lift-Up Drain Pump

No Overflowing Drain Water

The innovative drain pump check valve prevents drained water from flowing backwards into the drain pan. Minimising the drain pan's water level in this way means businesses never have to worry about water stagnation or overflows that drip into indoor spaces. The 2 Way Cassette provides fresh, clean air without contaminating the room.
No Overflowing Drain Water No Overflowing Drain Water

Specifications

Features

  • Type 2 WAY CASSETTE

Model Name

  • Indoor Unit AM071FN2DEH/EU

Power Supply (Indoor Unit) [Φ, #, V, Hz]

  • 1, 2, 220 - 240, 50

System

  • Mode HP / HR

Capacity

  • Cooling [kW] 7.1
  • Cooling [Btu/h] 24,200
  • Heating [kW]
  • Heating [Btu/h] 27,300

Power Input (Nominal)

  • Cooling 1) [W] 75
  • Heating 2) [W] 75

Current Input (Nominal)

  • Cooling 1) 0.4
  • Heating 2) 0.4

Fan

  • Type Crossflow Fan
  • Motor (Output) [W] 14 x 2
  • Air Flow Rate (High / Mid / Low) [CMM] 15.00/14.00/13.00
  • Air Flow Rate(High/Mid/Low)[L/S] 250.00/233.33/216.67

Piping Connections

  • Liquid Pipe (Φ, mm) 9.52
  • Liquid Pipe (Φ, inch) 3/8"
  • Gas Pipe (Φ, mm) 15.88
  • Gas Pipe (Φ, inch) 5/8"
  • Drain Pipe (Φ,mm) VP25 (OD 32, ID 25)

Field Wiring

  • Power Source Wire 1.5 ~ 2.5
  • Transmission Cable 0.75 ~ 1.50

Refrigerant

  • Type R410A
  • Control Method EEV INCLUDED

Sound

  • Sound Pressure (High / Mid / Low) [dB(A)] 41.0/39.0/37.0
  • Sound Power 60

External Dimension (Indoor Unit)

  • Net Weight 22
  • Shipping Weight (kg) 26
  • Net Dimensions (WxHxD) (mm) 890 x 230 x 575
  • Shipping Dimensions (WxHxD) (mm) 1,077 x 299 x 642

Panel Size

  • Panel model PC2NUSMEN
  • Panel Net Weight (kg)
  • Shipping Weight (kg)
  • Net Dimensions (WxHxD) (mm) 1,030 x 25 x 650
  • Shipping Dimensions (WxHxD) (mm) 1,103 x 151 x 727
