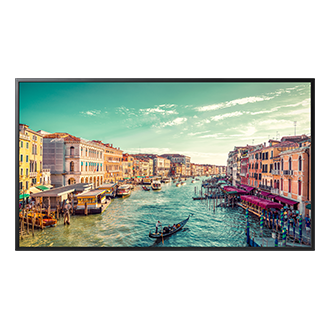

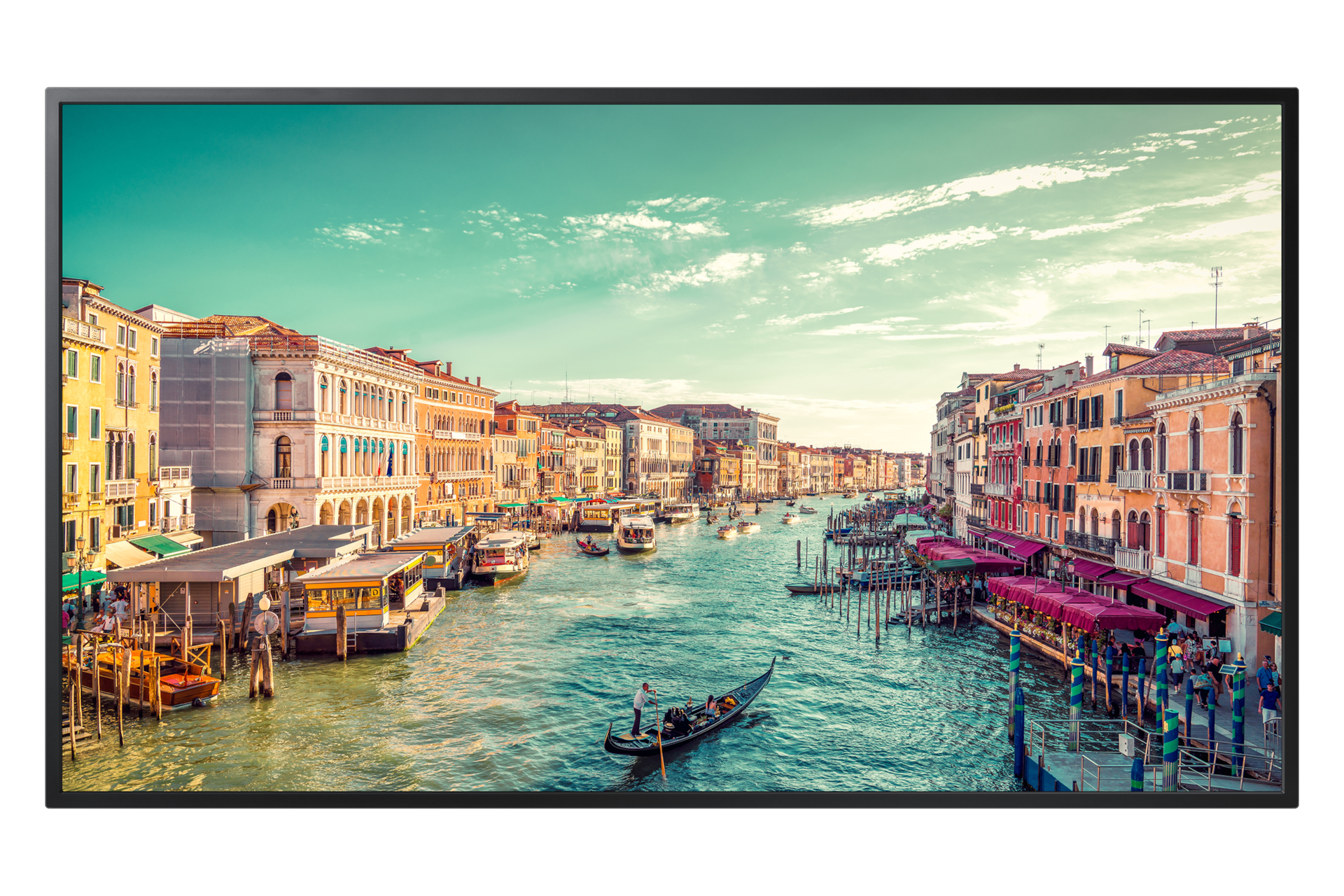

32" QMR Series Smart Signage Display

32" QMR Series Smart Signage Display

LH32QMREBGCXUE

  • Time to upscale your display
  • Incredible 4K picture quality
  • Intelligent UHD upscaling

Choose your size

32" QMR Series Smart Signage Display

32”

Time to upscale your display

Samsung’s new QMR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

Time to upscale your display Time to upscale your display

Incredible 4K picture quality

Samsung’s new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Incredible 4K picture quality Incredible 4K picture quality

Intelligent UHD upscaling

Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.

Intelligent UHD upscaling Intelligent UHD upscaling

Dynamic Crystal Color

The QMR series features Dynamic Crystal Color, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ functionality converts standard definition content to HDR quality for sharper contrast and more vivid colors.

Dynamic Crystal Color Dynamic Crystal Color

Perfect view with non-glare display

The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

Perfect view with non-glare display Perfect view with non-glare display

Slim and symmetrical design

The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

Slim and symmetrical design Slim and symmetrical design

Clean cable management

With QMR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.

Clean cable management Clean cable management

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Powerful, all-in-one solution Powerful, all-in-one solution

Samsung Workspace secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

Samsung Workspace secured by Knox
Samsung Workspace secured by Knox

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.

WiFi and Bluetooth built-in WiFi and Bluetooth built-in

* Image is for illustrative purposes only, specific application or program may have to be developed for the depicted usage scenario.

Industry standard certified

The QMR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.

Industry standard certified Industry standard certified

Specifications

Display

  • Diagonal Size 32"
  • Panel Type New Edge, 60 Hz
  • Resolution 1920 x 1080
  • Pixel Pitch (HxV) 0.364 x 0.364 mm
  • Brightness (Typical) 400 nit
  • Contrast Ratio 5000:1
  • Viewing Angle (H/V) 178° / 178°
  • Response Time 8 ms
  • Color Gamut 72 %
  • Glass Haze 2 %
  • H-Scanning Frequency 30 ~ 81 kHz
  • Maximum Pixel Frequency 594 MHz
  • V-Scanning Frequency 48 ~ 75 Hz
  • Contrast Ratio (Dynamic) Mega DCR

Connectivity

  • HDMI In 2
  • DP In Yes
  • USB 2
  • IR In Yes
  • HDBaseT In No
  • Audio In No
  • Audio Out Stereo Mini Jack
  • Video Out Yes
  • RS232 In Yes
  • RS232 Out Yes
  • RJ45 In Yes
  • RJ45 Out No
  • WiFi Yes
  • 3G Dongle No
  • Bluetooth Yes

Power

  • Power Supply AC 100 - 240 V 50 / 60 Hz
  • Power Consumption (On Mode) 72.0 W
  • Power Consumption (Sleep Mode) 0.5 W

Dimension

  • Set Dimension (WxHxD) 725.1 x 419.6 x 34.6 mm
  • Package Dimension (WxHxD) 812 x 513 x 120 mm

Weight

  • Set Weight 5.7 kg
  • Package Weight 8.0 kg

Operation Conditions

  • Temperature 0 ~ 40℃
  • Humidity 10 ~ 80 %, non-condensing

Mechanical Specification

  • VESA Mount 200 x 200 mm
  • Bezel Width 8.8 mm (U/D/L/R)
  • Frame Material Non-Glossy

Optional Feature

  • Mount WMN4070SE
  • Stand STN-L3240E

Internal Player (MagicInfo)

  • MagicInfo Daisychain Videowall Support Yes

Certification and Compliance

  • EMC FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409
  • Safety CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
